Metal Bellows Couplings


We are Manufacturer, Supplier, Exporter of Metal Bellows Couplings and Our setup is situated in Pune, Maharashtra, India.

The metal bellow coupling is designed to be used in various torque transmission applications. The metal bellow perfectly compensates for axial, radial, and angular misalignments. The designed geometric shape of the steel bellow allows high torsional stiffness and a low mass moment of inertia. The Bellow Coupling is manufactured in five sizes for maximum torques up to 400 Nm. The coupling steel bellows and clamping rings are the same for all the designs within a construction size. They are adapted via reducing bushings to the required shaft diameter. These bushings can be of Stainless steel or of Aluminium.

We also develope custom bellows couplings based on customer requirements.

Part
bellows couplings

Size Torque (Nm) Maximum Speed (rpm) Mass Moment of Inertia (10⁻⁶ kgm²) Torsion Spring Stiffness (Nm/rad) Axial Spring Stiffness (N/mm) Radial Spring Stiffness (N/mm) Clamping Screws Weight (kg) Permitted Displacement
Screw Size Tightening Torque (Nm) Axial (mm) Radial (mm) Angular (deg)
BC 1 16 10000 36 4000 50 470 M5 10 0.132 0.5 0.3 2.5
BC 2 40 8000 104 9000 70 850 M6 14 0.245 0.6 0.4 2.5
BC 3 100 6500 417 21000 82 920 M8 17 0.467 0.8 0.5 2.5
BC 4 200 5000 1210 50000 120 2040 M8 35 1.00 1 0.5 2.5
BC 5 400 3000 3420 125000 172 2250 M12 120 1.80 0.8 0.5 1.5
Dimension [mm] Size
BC 1 BC 2 BC 3 BC 4 BC 5
Minimum Bore Ø dmin 8 10 14 20 25
Maximum Bore Ø dmax 20 30 42 55 65
General Dimension D 48 59 74 92 116
L 58 61 72 83 116
b 18 20 22 27 31
c 16 18 20 25 27

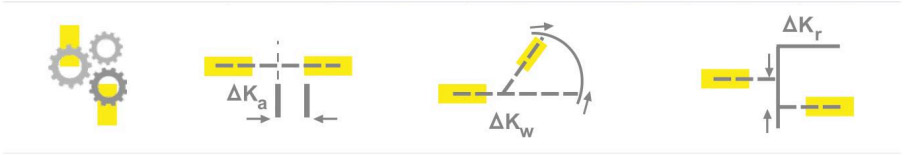

figure
Torque Transmission For Various Diameters
Diameter (mm) BC-1 BC-2 BC-3 BC-4 BC-5
Rated Torque (Nm) Test Torque (Nm) Rated Torque (Nm) Test Torque (Nm) Rated Torque (Nm) Test Torque (Nm) Rated Torque (Nm) Test Torque (Nm) Rated Torque (Nm) Test Torque (Nm)
8 9 14 - - - - - - - -
9 11 17 - - - - - - - -
10 13 20 20 32 - - - - - -
11 14 21 24 36 - - - - - -
12 16 24 26 39 - - - - - -
14 16 24 31 47 35 51 - - - -
15 16 24 33 50 42 63 - - - -
16 16 24 35 52 51 77 - - - -
18 16 24 39 59 58 87 - - - -
19 16 24 40 60 61 91 - - - -
20 16 24 40 60 67 100 133 199 - -
24 - - 40 60 74 110 147 220 - -
25 - - 40 60 85 128 167 250 205 301
28 - - 40 60 85 128 187 280 225 323
30 - - 40 60 85 128 200 300 240 360
32 - - - - 85 128 200 300 256 384
35 - - - - 85 128 200 300 280 420
38 - - - - 85 128 200 300 305 457
40 - - - - 85 128 200 300 320 480
42 - - - - 85 128 200 300 340 510
45 - - - - - - 200 300 360 540
50 - - - - - - 200 300 400 600
55 - - - - - - 200 300 400 600
60 - - - - - - - - 400 600
65 - - - - - - - - 400 600
